Brass Cast Iron Bearing

Product NameBrass Cast Iron Bearing
MaterialH59
Brinell Hardness BH 160-220
Casting ModuleSand Casting, Green Sand Casting / Clay Sand Casting
Weight0.1-3.0kg / set
Quality ControlSpectrum Analyzer, Three-Coordinate Detector, Metallographic Analyzer, Tensile Testing Machine Imported From Germany.
ApplicationValve Parts

YIDE

Brass Cast Iron Bearing

Yide casting is a casting foundry from China, we have cooperation with much famous company and we also have our patent heat exchanger for air conditioner.

If you are looking for a quality casting foundry, then you find the right casting manufacturer, don’t hesitate to contact Yide casting (JM casting).

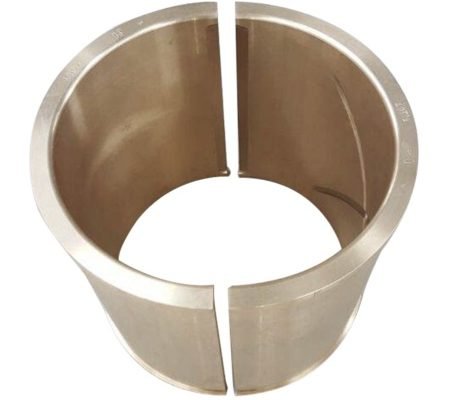

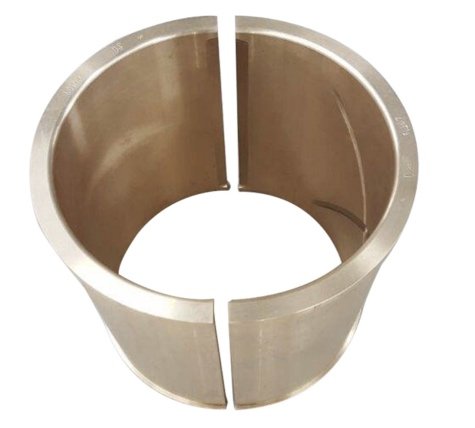

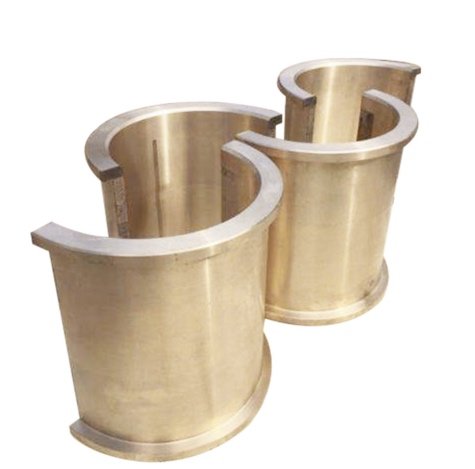

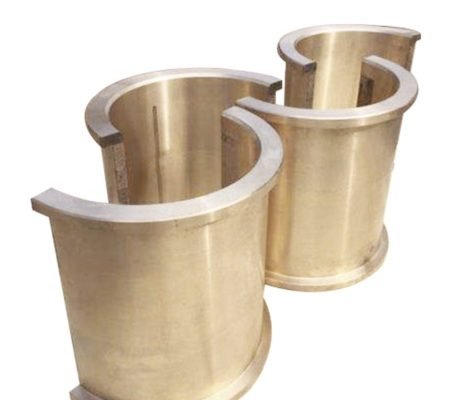

The brass cast iron bearing is used to support the rotating parts and transfer the generated load to the body of the equipment. The working condition of the bearing not only directly affects the processing accuracy of the equipment, but also affects its life and efficiency.

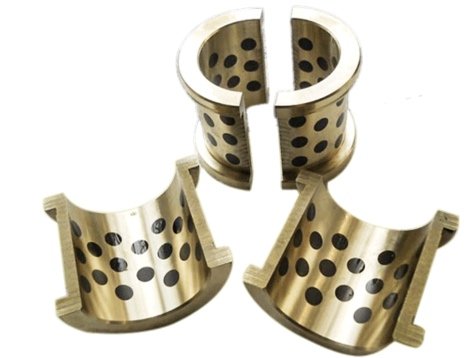

The brass cast Iron bearing produced by Yide Casting is a high-performance solid lubricating product inlaid with graphite or MoS2 solid lubricant on the base of colliers brass(ZCuZn25Al6Fe3Mn3).

The brass Cast Iron bearing breaks through the limitations of general bearings that rely on oil film lubrication.

During use, the frictional heat causes the solid lubricant to rub against the bearing to form an excellent condition for the coexistence of oil and powder lubrication, which not only protects the bearing from wear, but also makes the solid lubrication properties eternal.

At the same time, the hardness of the brass cast Iron bearing is twice as high as that of the common copper sleeve, and the wear resistance is also twice as high.

At present, he brass cast Iron bearing has been widely used in metallurgical continuous casting machines, injection molding machines, train supports, steel rolling equipment, mining machinery, ships, gas turbines and other high temperature, high load, low speed and heavy load occasions.

Yide casting manufactures these H59 Piping products with a strict standard.

  1. Don’t allow any defects on the surface of truck casting items, such as porosity, trachoma and cold partition.
  2. The product burr should be handled cleanly, for better installing and using of our casting customer.
  3. It is absolute to manufacture a real dimensional accuracy of the machining not exceed the tolerance, according to your’ drawing requirements. Yide casting always designs a reasonable machining and processing steps to reduce the clamping step, so that Yide can ensure processing accuracy and maximize the production of casting products.

Electrophoresis Treatment of Iron Casting Parts

Yide iron casting always does electrophoresis treatments on the surface of the iron casting product, so that coated a protective film on the cast gray iron parts surface.

The electrophoresis treatments of casting items not only can prevent corrosion and rust during the use of the product effectively, but also decorate the iron cast items surface more beautiful and smooth.

Product Name Brass Cast Iron Bearing
Casting Type H59
Casting Module Sand Casting / Clay Sand Casting / Green Sand Casting
Casting Manfacturer YiDe Iron Casting
Quality Control Spectrum Analyzer, Three-Coordinate Detector, Metallographic Analyzer, Tensile Testing Machine Imported From Germany.
Standards ASTM A48, ISO 185, DIN 1691, EN 1561, JIS G5501, UNI 5007, NF A32-101, BS 1452, IS 210, UNF, NBN 830-01, AS 1830, SS14 01, NS11 100
Material Grade Gray Cast Iron ASTM A48 NO.30
Application Valve Parts
Machining Requirements grinding to mirror for top and bottom side
Defects Requirements Zero defects for both top and bottom side, and inside
Inspection Method visual, dimensional, X-ray inspection
Exported to USA

Copper Joint Connector Part

  1. Machine Molding

    Yide iron casting factory comes from China, is a professional iron casting, steel casting and brass casting manufacturer, provides OEM service for our automatic trailer accessories casting customers.

    The first step of an order beginning is to make a module according to your requirement. Yide has a high advance molding equipment to make automatic parts molding, can make a high hard sand molding according to the module design.

    YiDe iron casting manufacturer has two types of sand to make casting module – reusable sand and disposable sand. Thus you can choose suitable sand according to your needs. Of course, the reusable sand module needs more cost than the disposable sand module.

  2. Melting and Pouring

    As you think, the raw material of iron casting is pig iron, Yide Stainless Casting needs to melt these pig iron, and pouring these liquid pig iron into the sand module so that we can get an original roughcasting part.

  3. Inspection Before Producing

    When the Yide iron casting factory gets an iron casting order, there will be some requirements of chemical composition, such as carbon.
    So Yide stainless casting must have strict inspection before big production.

  4. Machining

    After melting & pouring, passing the inspection, Yide will arrange the production of truck iron cast parts. Then do machining for these rough gray casting parts, make them look more beautiful, and have good dimensional accuracy according to the requirements.
    Various CNC equipment and Machining Center can meet customers’ requirements for product processing technology and dimensional accuracy. The current accuracy of iron casting parts can reach 2U.

Final Quality Control of Copper Joint Connector Part

JM iron casting manufacturer always has relative lodge cast iron types of equipment for quality inspection of JM raw iron material test and final casting parts.

Package of Copper Joint Connector Part

Yide casting package our casting H59 products, ductile iron casting products or bronze/brass casting parts with fumigation-free wooden box, and the inside of the box is also separated by carton and partition board.

A customized package is available too.

The final packaging of Yide iron casting can be customized according to customer requirements to meet the different needs of different customers, such as wood carton for cast iron bathtub or cast iron radiators, hard carton for ductile cast iron pipe or some small truck parts.

Yide provides one-stop service for our casting iron customers.

Whatever from casting, processing, surface treatment, inspection or packaging, Yide casting strives to deliver the best shell casting & green sand casting products to our clients.

Quality and punctual delivery are the factory’s cooperation guidelines!

If you are interested in our customized iron casting products, and looking for OEM, ODM casting service, please feel free to contact us for more details and get a quick quote.
