Cast Iron Skillet

Product NameCast Iron Skillet
MaterialCast Iron
Brinell Hardness BH 160-220
Casting ModuleSand Casting, Green Sand Casting / Clay Sand Casting
Weight1kg / set
Quality ControlSpectrum Analyzer, Three-Coordinate Detector, Metallographic Analyzer, Tensile Testing Machine Imported From Germany.
ApplicationGas Cooker

YIDE

Production Details

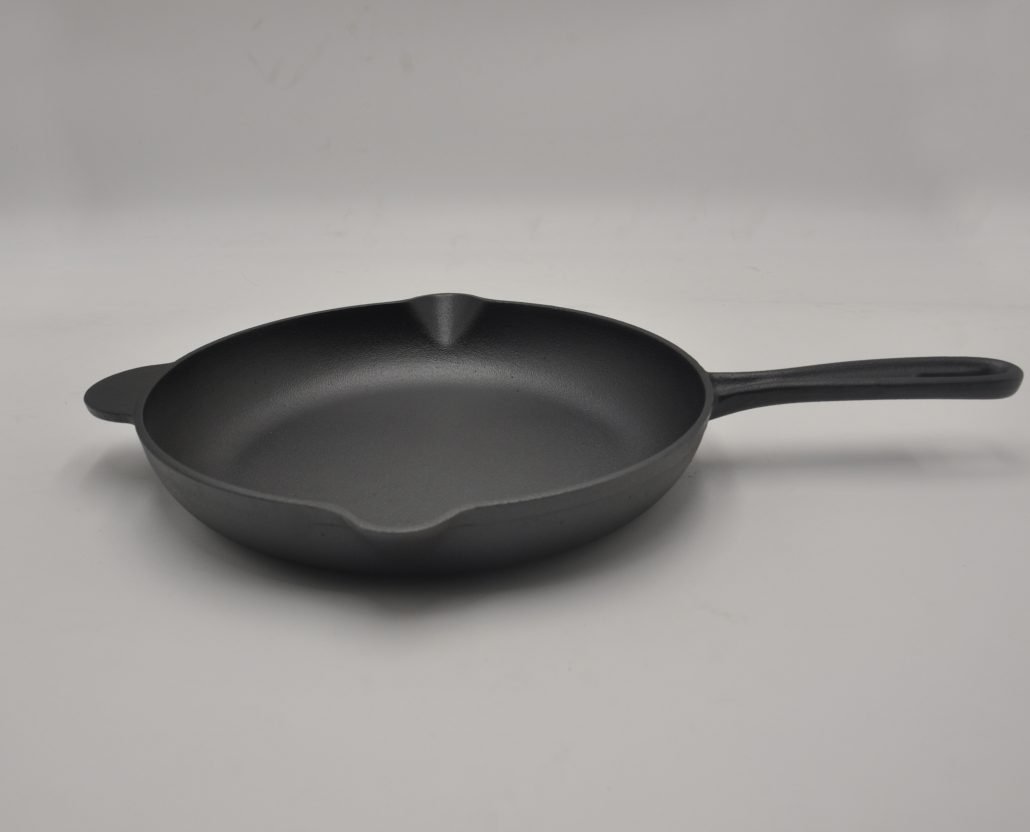

Cast Iron Skillet

This gray cast iron skillet is made of QT450-10 material, with BH160-22 Brinell hardness, the weight of this iron casting part is about 1kg/set.

This skillet cast iron part is a gray iron casting product, and this grey cast iron skillet doesn’t add any auxiliary raw materials, and then being poured into the green sand casting model, formed as skillet roughcasting. Finally, Yide casting will machine the gray iron cast skillet from roughcasting to final smooth skillet.

Yide casting manufactures these grey iron casting products with a strict standard.

  1. Don’t allow any defects on the surface of truck casting items, such as porosity, trachoma and cold partition.
  2. The product burr should be handled cleanly, for better installing and using of our casting customer.
  3. It is absulote to manufacture a real dimensional accuracy of the machining not exceed the tolerance, according to your’ drawing requirements. Yide casting always designs a reasonable machining and processing steps to reduce the clamping step, so that Yide can ensure processing accuracy and maximize the production of casting products.

Electrophoresis Treatment of  Skillet Iron Casting Parts

Yide iron casting always does electrophoresis treatments on the surface of the iron casting product, so that coated a protective film on the cast gray iron parts surface.

The electrophoresis treatments of casting items not only can prevent corrosion and rust during the use of the product effectively, but also decorate the iron cast items surface more beautiful and smooth.

Product NameCast Iron Skillet
Size26X26X4.7cm
CoatingPreseasoned
ColorBlack
Package1 A piece in One Inner Box,4 Inner Boxes in One Master Carton
StandardsASTM A48, ISO 185, DIN 1691, EN 1561, JIS G5501, UNI 5007, NF A32-101, BS 1452, IS 210, UNF, NBN 830-01, AS 1830, SS14 01, NS11 100
Material GradeGray Cast Iron ASTM A48 NO.30
ApplicationHome Cooking
Machining Requirementsgrinding to mirror for top and bottom side
Defects RequirementsZero defects for both top and bottom side, and inside
CertificationFDA
Exported toUSA

Production of Cast Iron Skillet

  1. Machine Molding

    Yide iron casting factory comes from China, is a professional iron casting, steel casting and brass casting manufacturer, provides OEM service for our automatic trailer accessories casting customers.

    The first step of an order beginning is to make a module according to your requirement. Yide has a high advance molding equipment to make automatic parts molding, can make a high hard sand molding according to the module design.

    YiDe iron casting manufacturer has two types of sand to make casting module – reusable sand and disposable sand. Thus you can choose suitable sand according to your needs. Of course, the reusable sand module needs more cost than the disposable sand module.

  2. Melting and Pouring

    As you think, the raw material of iron casting is pig iron, Yide Stainless Casting needs to melt these pig iron, and pouring these liquid pig iron into the sand module so that we can get an original roughcasting part.

  3. Inspection Before Producing

    When the Yide iron casting factory gets an iron casting order, there will be some requirements of chemical composition, such as carbon.
    So Yide stainless casting must have a strict inspection before big production.

  4. Machining

    After melting & pouring, passing the inspection, Yide will arrange the production of truck iron cast parts. Then do machining for these rough gray casting parts, make them look more beautiful, and have good dimensional accuracy according to the requirements.
    Various CNC equipment and Machining Center can meet customers’ requirements for product processing technology and dimensional accuracy. The current accuracy of iron casting parts can reach 2U.

Final Quality Control of Cast Iron Skillet

JM iron casting manufacturer always has relative lodge cast iron types of equipment for quality inspection of JM raw iron material test and final casting parts.

Package of Cast Iron Skillet

Yide casting package our casting grey iron products, ductile iron casting products or bronze/brass casting parts with fumigation-free wooden box, and the inside of the box is also separated by carton and partition board.

A customized package is avaliable too.

The final packaging of Yide iron casting can be customized according to customer requirements to meet the different needs of different customers, such as wood carton for cast iron bathtub or cast iron radiators, hard carton for ductile cast iron pipe or some small truck parts.

Yide provides a one-stop service for our casting iron customers.

Whatever from casting, processing, surface treatment, inspection or packaging, Yide casting strives to deliver the best shell casting & green sand casting products to our clients.

Quality and punctual delivery are the factory’s cooperation guidelines!

If you are interested in our customized iron casting products, and looking for OEM, ODM casting service, please feel free to contact us for more details and get a quick quote.

FAQ

You Are Iron Casting Distributor or Cast Iron Manufacturer ?

Yes, we are.

Yide casting is a iron casting manufacturer, our internetional trade office is located at Zhejiang Hangzhou.

The address is No. 1328 Wenyi West Road, Cangqian Street, Yuhang District, Hangzhou Zhejiang.

Our Factory JM casting is located at Ninghai Zhejiang.

What Products Do You Do ?

Yide casting provide gray iron casting, ductile iron casting, brass/bronze casting, steel casting and JM heat exchanger for air conditioner.

Do You Provide ODM & OEM Service for Iron Casting Parts ?

Yes, we do.

Yide casting provide ODM & OEM casting service for our customers.

Which Sand Casting Do You Do ?

Sand Casting – Green sand casting / clay sand casting, shell casting / precoated casting.

How Many Sqm Are Your Plant ?

Ninghai Jinma Casting has a plant of 20000 sqm, over 200 employees.

What Is Your Production Per Year ?

20,000 tons.

JM casting manufacturer has enough ability to manufacture clay sand casting & precoated sand casting capacity over 20,000 tons.
